project | unit | Design value |

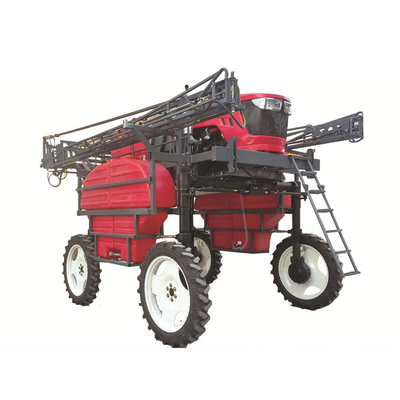

1 Complete machine product category | Rod sprayer 2200G | |
2 Structure of the whole machine | Self propelled | |
3 Working pressure of the whole machine | MPa | 0.3-0.5 |
4 (CX) Drive type of the whole machine | Four linkage | |
5 (CX) Steering type of the whole machine | Four-wheel steering | |
6 Overall dimensions of the machine | mm | 5800x3100x3300 |
7 Length of spray rod | mm | 20300 |
8 (CX) machine horizontal range or spray | ||
9 (cx) Minimum ground clearance | mm | 1730 |
10 The whole machine pressure limiting safety device | There are | |
11 (CX) jet rod folding type | hydraulic | |
12 (CX) jet rod lifting type | hydraulic | |
13 (CX) cab type | There is no | |
14 (cx) wheelbase | mm | 2500 |
15 (Cx) front wheel base | mm | 2630 |
16 Maximum wheel base after | mm | 2630 |
17 Front wheel outer diameter (CX) | mm | 1180 |
18 Front tire width (Cx) | mm | 180 |
19 (CX) front wheel type | Pneumatic tyre | |
20 (Cx) rear wheel od | mm | 1180 |
21 (CX) rear tire width | mm | 180 |
22 (CX) rear tire type | Pneumatic tyre | |
26 Name of the engine or motor | / | The diesel engine |
27 Engine or motor structure type | / | In-line, water-cooled, four-stroke, four-cylinder, |
28Engine or motor calibrated power/speed | kW/(r/min) | 74/2400 |
29 Operating voltage of engine or motor | V | |
30 Mode of production of engine or motor | procurement | |
31 Structural type of liquid (gas) pump/motor pump | Diaphragm pump | |
32 Liquid pump/motor pump rated pressure | MPa | 3 |
33 Rated flow of liquid pump/motor pump | L/min | 100 |
34 Liquid pump/motor pump plunger (piston) diameter | ||
35 Liquid pump/motor pump production mode | / | procurement |
36 Volume of medicine cabinet | L | 2200 |
37 Material of medicine cabinet | polyethylene | |
38 Quality of medicine cabinet | kg |
