Product Description
The chassis is high, the ground clearance is large, and the passability is good. It is suitable for the growth cycle of not-so-far crops; the spray boom is long and the medicine box capacity is large, which replaces the manual 40 times; the four-wheel-drive four-steer, small and flexible turning radius, easy to work in the field .
1. The only high ground clearance three-point bearing drive axle independently developed, designed and produced;
2. The only complete machine manufacturer that independently develops, designs and produces core components;
3. The uniqueness of the spraying system. Only when there is health, there is everything, and when there is healthy life, there is a home;
4. Full hydraulic balance device spray system;
5. Special steel frame, electrophoresis coating of the whole vehicle;
6. High-density rubber tires;
7. The fourth generation MAITE4 has a special appearance, exquisite workmanship, and unique Chinese red
8. The side gear is adopted to allow users to work easily;
9. The front spray frame is supported by three points, which is safe and stable;
10. The material of the ceiling is polyethylene;
11. The 4 U-shapes on the car are all produced in molds by themselves;
12. Use single-layer steel wire return pipe and oil inlet pipe;
13. Adopt 495 large radiators;
14. The switch handle of the fertilizer spreader has a positioning function;
15. The frame of the whole vehicle adopts pure 100×50 cold drawn square tube;
16. Adopt large silencer

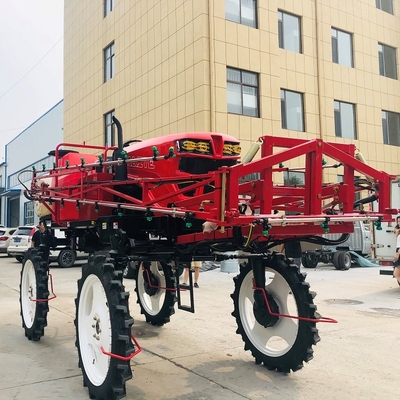

3WPZ-1500A Self-propelled sprayer
| Prouduct model | 3WPZ-1500A |
| Wheel drive | 4×4 |
| Dimension | 5370×2140×2530mm |
| Weight | 2200kg |
| wheel tread | 1800mm |
| Wheel base | 2350mm |
| Min land clearence | 1050mm |
| Tire size | 1180mm Pneumatic tire |
| Boom length | 1810mm |
| Medicine box volume | 1000L+500L |
| Steering Type | Four-wheel steering |
| Engine Specification | |
| Engine model | YUNNEI |
| Engine type | water cooled, vertical, 4 stroke and direct injection |
| Rated power(kw) | 74 |
| Rated revolution | 2400r/min |
| Start way | Electric start |
| Remarks | Optional installation of fertilizer spreader, wheel track/medicine tank capacity/tire/spray bar can be customized. |
Product images
