Home /Products/Motorized Fertilizer Spreader/One Landing Main/Multi-rotor 30L Takeoff Cultivating Bumblebee 16kg 30kg Rag Pellets Sprayer Spreader Drone For Blueberry China Factory

One Landing Main/Multi-rotor 30L Takeoff Cultivating Bumblebee 16kg 30kg Rag Pellets Sprayer Spreader Drone For Blueberry China Factory

1 Unit
MOQ
$5,200.00(1 - 28 Units) $5,100.00(>=29 Units)
Price
One Landing Main/Multi-rotor 30L Takeoff Cultivating Bumblebee 16kg 30kg Rag Pellets Sprayer Spreader Drone For Blueberry China Factory
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: JT16L-404QC
Material: Aviation Aluminum, Carbon Fiber, Carbon Fibre + Aviation Aluminum
Power: X9 PLUS FOC
Type: Agriculture Use
Function: One Key Takeoff / Landing, Altitude Hold Mode, Headless Mode, With Camera, APP Control, With Remote Control, With LED Lights, Automatic Spraying, AB Point/Automatic Obstacle Avoidance/Terrain Following Spraying/FPV
Private Mold: No
Capacity: 20000 Ml
Product Name: Agricultural Fumigation Spraying Drone
Brand: Joyance
Battery: 1 Pc 20000mAh 14S
Spray Width: 6-7 M
Spray Efficiency: 8-10 Ha/hour
Shipment: By Sea, Air, Express DHL FedEx TNT..
Free Training: Yes
Ready To Fly: Yes
Basic Infomation
Model Number: JT16L-404QC
Payment & Shipping Terms
Packaging Details: One drone and spare parts are put into a same Aluminum transport case. 30L Multi-Rotor Farming Drone 16kg 30kg Duster Granules Sprayer Spreader Drone For Blueberry China Factory
Product Description
Joyance Drone Seed Spreader Granule Using UAV 16kg 30kg UAV Fertilizer Agriculture Drone Spreader Drone for Spreading Seedsng
The Details of sprayer drones
Granular spreader specifications
Voltage range
12~14s (40~60V)
Turntable pwm
1148us~1832us
Servo voltage range
5-8.4v (requires external power supply)
Servo opening pwm
500~2230us
Rated power
60W
Power range
20-180W (idling - maximum flow rate)
Rated current
1A
Current range
0.3-3
Turntable speed
800~1500rpm/min
Sowing range width
5-10m
Diameter of the discharge opening
115mm (matching the diameter of the material box)
Opening area
47 square centimeters (three sectors)
Sowable particle diameter
0.5-5mm
The maximum feeding speed
80 kg/min (take urea as an example)
Weight
2.2kg/2.5 kg
Size
16L: W335mm x L640mm x h300mm
30L: W360mm x L740mm x h340mm

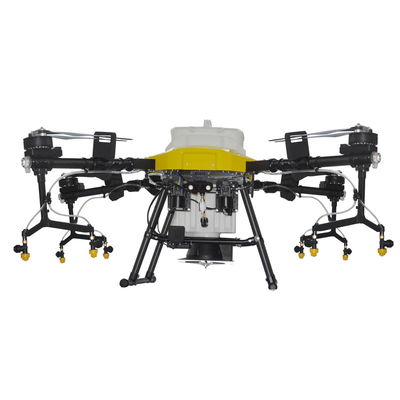

Joyance agriculture sprayer drone with granule spreader
1. Joyance agriculture sprayer drone with granule spreader can spread solid fertilizers granule fertilizer, seeds, sows, feed and so on.
2. Spreading width up to 10m, bin volume 16/30 liters, maximum spreading speed up to 80KG/Min, accurate and efficient spreading.
3. Large flow discharge port, the opening area is 47 square centimeters, and the spreading fertilizer can reach 80kg per minute.
4. The rotation speed is 800~1500RPM, and the broadcast width is adjustable from 5 to 10 meters.
5. Quick bolt locking design, stable installation, and not affected by vibration. The spreader can be quickly disassembled, installed, and inspected, IP67 waterproof and dustproof.
Model

JT16L-404QC
JT30L-606
Pesticide Tank

16L
30L
Net Weight

18kg
27.5kg
Take-off Weight

40kg
67kg
Flying Time

10~15min
10~15min
Machine Size
Spread Size
W1.40m x L1.35m x H0.7m
W2.2m x L1.85m x H0.8m
Folded Size
W0.85m x L0.85m x H0.7m
W1.25m x L0.9m x H0.8m

Power System
Motor
Brushless
Brushless
Propeller
Carbon Fiber
Carbon Fiber
Propeller
Rapid Throttle Response
Rapid Throttle Response
Flight Control

K++ V2
K++ V2
Remote Controller

Joyance Datalink H12 RC
Joyance Datalink H12 RC
Battery / Quantity

14S 20000mAh / 1pc
14S 28000mAh / 1pc
Adapter + Charger

Dual-Channel Charger 3000W
Dual-Channel Charger 3000W
Aluminum box size / weight
Packing Case
98*92*75cm / 65kg
154*109*94cm / 100kg
Toolkit

Maintenance/Repair Tools
Maintenance/Repair Tools
We also have different series agriculture sprayer drones, as below:
About Joyance Tech company
Shandong Joyance Intelligence Technology Co., Ltd. ● Leading & professional sprayer drone solution provider ● 9 years of R & D experience ● 200 units per month output ● Shortest delivery time ≤3 working days, sufficient spare parts in stock ● Real users in 73 countries & regions ● Overseas technical support ● Lifetime online after-sales service ● CE, FCC, RoHS, ISO 9001 certification ● Top quality & Competitive price & Your reliable partner ● Looking forward to dealers or agents all over the world

Thanks to Joyance team especially with the contact for all special support to maintenance and spare parts. JOYANCE drone is the best in all over the world, thank you so much.

Having an efficiency of 96% with wind and at noon which is a very strong conditions. We have had a 20% reduction in product, whether chemical, biological or organic, with outstanding results and helping us with costs as well.
After-sales & Services
√ Warranty: 3 years for the agriculture drone frame; 12 months for main drone spare parts; 3 months for wearing spare parts. √ Ready to fly and quality control:100% tested before delivery.  √ Lifelong after-sales service, offer operation manual and videos, timely online technical support is available. √ Free training in our factory, including operation and maintenance, takes 2-3 days.
Packing and Transportation
FAQ
Q1. Are you sprayer drone factory? A1: Yes, we are a professional manufacturer of agricultural spraying drones: sprayer drone, spreader drone, fogger drone, and biological control drone, also sell spare part for agri drones. Q2. Is uav sprayer drone ready to fly? A2: Yes. Before dispatch, JOYANCE will assemble the agriculture drone, set parameters and test flight in the field, ensure that all the drones are 100% qualified and ready to fly. Q3. What's your MOQ of agricultural drone? A3: MOQ ≥1.  More than 100 units order is available. Besides, we are looking for dealers and agents all over the word. Welcome to contact us for more. Q4. What's the delivery time of sprayer drone? A4: 2-3 days for one, please contact us for mass order. We have lots of spare parts in stock, will ship them by UPS, FedEx, TNT...
Q5. What's your payment term? A5: We accept T/T, credit card, paypal and western union, etc. payment methods.
