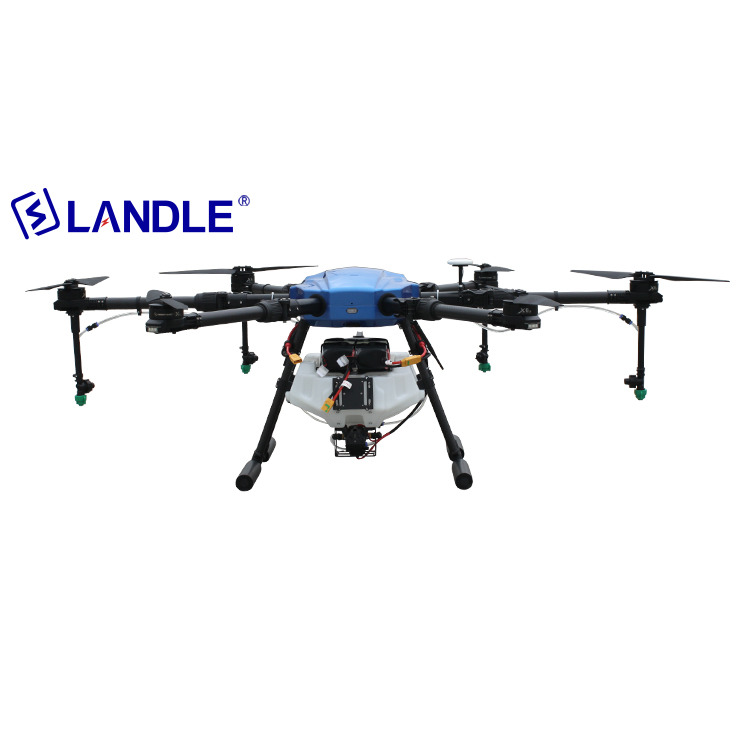

NSA622 Professional UAV Agricultural Fertilizer For Drone
Quick Details:
Product Description
|
Model |
NSA410 |
NSA422 |
NSA610 |
NSA622 |
|
Rotor |
4 |
4 |
6 |
6 |
|
Hovering accuracy horizontal |
+/- 1.5m |
+/- 1.5m |
+/- 1.5m |
+/- 1.5m |
|
Hovering accuracy vertical |
+/- 0.5m |
+/- 0.5m |
+/- 0.5m |
+/- 0.5m |
|
Wind resistance |
4~5 |
4~5 |
4~5 |
4~5 |
|
Motor |
4*100KV |
4*110KV |
6*180KV |
6*100KV |
|
Electronic Speed Control |
80A |
120A |
80A |
80A |
|
Motor applicable temperature |
-20~50℃ |
-20~50℃ |
-20~50℃ |
-20~50℃ |
|
Paddle |
3090 |
3411 |
2388 |
3090 |
|
Feed Tank |
10L |
22L |
10L |
22L |
|
Take-off Capacity |
28kg |
38kg |
30kg |
42kg |
|
Flying Time (with payload) |
10~15min |
10~15min |
10~15min |
10~15min |
|
Flying distance |
5000m |
5000m |
5000m |
5000m |
|
Working distance |
2000m |
2000m |
2000m |
2000m |
|
Flying Speed |
0~10m/s |
0~10m/s |
0~10m/s |
0~10m/s |
|
Spreading Width |
3~6m |
3~6m |
3~6m |
3~6m |
|
Spread Distance |
2~5m |
2~5m |
2~5m |
2~5m |
|
Expand Size |
1075*1075*490mm |
1100*1100*560mm |
1495*1308*500mm |
1720*1500*556mm |
|
Wheelbase |
1393mm |
1400mm |
1404mm |
1628mm |
|
Folded Size |
635*666*490mm |
640*670*560mm |
945*848*500mm |
1073*956*546mm |
|
Battery / Quantity |
6S/16000mAh / 2pcs |
6S/22000mAh / 2pcs |
6S/16000mAh / 2pcs |
6S 22000mAh / 2pcs |
|
FPV Camera |
Optional |
Optional |
Optional |
Optional |
|
Obstacle avoidance radar |
Optional |
Optional |
Optional |
Optional |
|
Terrain following radar |
Optional |
Optional |
Optional |
Optional |
|
RTK centimeter positioning |
Optional |
Optional |
Optional |
Optional |
Chassis of Drone
|
Fully waterproof fuselage The fuselage adopts the integrated waterproof design, supports washing (Excluding motor and battery parts), and the shell surface adopts the star-bright blue coating, with beautiful shape and eye-catching color.
|
||||
|---|---|---|---|---|
|
New folding part The unique C-type arm fixing clip design. It can be used to fix the arm after the arm is folded, avoiding the problems such as arm swing and sag in the process of handling.
|
Integrated power system
The PMSM algorithm based on FOC is optimized to create a perfect dynamic system
Super protection, easy to deal with the harsh environment of plant protection
Intelligent multiple redundancy protection, running data real-time output
Highlight the LED display
High lift, high efficiency propeller
Sturdy, reliable and impact resistant
Modular design, easy maintenance
support system upgrade
Spreading Tank
The spreader can adjust the size of the outlet valve and the speed of the spreading turntable, so as to accurately control the discharge volume and the discharge speed. At the same time, the spreader is equipped with a stirring device to prevent the discharge from being blocked, improving the accuracy and reliability of the spreading operation.
APP Ground Workstation
1. Android mobile phone ground workstation, Control and adjust drone’s flying parameter, provide google map, check FPV video.
2. Support hand held GPS dot device,RTK dot device,Drone GPS dot and Map for choosing, set up Automatic, semi-automatic AB working mode, flying height, spray mode, flight line spacing, flying speed, Terrain following, automatic obstacle avoidance, course adjustment, fail-sail back.
3. Query job record, flight time, spray width, dose etc.
Application
| Ground Defense Radar | |
|
Ground defense radar uses millimeter-wave radar technology. Through the continuous scanning of the radar, the drone can sense the terrain change of the flight direction and adjust the flight height in time according to the terrian and the crop height to realize the ground defense flight and ensuring uniform spraying in flight. Ground defense radar has stable detection performance and good environment practicality, strong anti-interference ability, not affected by light, far detection distance, with all-weather and all-day characteristics.
Characteristic:
|
|
| Obstacle avoidance radar | |
|
Obstacle avoidance radar is mainly used to measure the relative distance between the UAV and the obstacle in front of the flight, so as to effectively avoid the obstacle. Obstacle avoidance radar adopts 24GHZ radar technology, which can work all-weather under the environment of strong light, high temperature, fog, dust, wind and night. Its sensitivity is high, the detection distance is long, the signal transmission is fast and stable, and it can detect a diagonal pull of more than 1cm Electric wires, small trees with 10cm trunks, 1.7m high people and 15cm electric poles, have a good obstacle avoidance function for high-speed running drones, and are very suitable for plant protection drones to operate in complex outdoor environments.
Characteristic:
|
|
| J-RTK centimeter-level precision positioning system | |
|
J-RTK is a new generation of high-precision navigation and positioning system. It uses real-time dynamic differential technology to improve the three-dimensional positioning accuracy from meters to centimeters. It makes up for the deficiencies of traditional GPS and barometer solutions, and provides accurate and reliable positioning solutions for high-precision applications. J-RTK has the characteristics of high positioning accuracy and strong anti-magnetic interference. It can also ensure reliable operation in the environment of strong magnetic interference such as high-voltage lines and metal buildings.
Characteristic:
|
|
Why choose NEWLANDLE fertilizer drone?
1) Stable
Flight controller Dual CPU configuration, Triple redundant IMU, Dual redundant barometer;
2) Efficient
Spreading Width: 3~6m;
3) Effective
The spreader can adjust the size of the outlet valve and the speed of the spreading turntable, so as to accurately control the discharge volume and discharge speed;
4) Intelligent
a). One-key take off & land, autonomous fly with way points controlled by Mobile phone APP;
b). Low voltage, no signal, return automatically;
c). Fail safe protection;
d). Spray flow control;
e). Intelligent automatic obstacle avoidance;
f). Intelligent terrain following;
g). FPV Camera;
h). RTK centimeter positioning.
5) Quality control
Every drone is tested and has to pass through a rigorous quality control test to confirm it meets the highest standards in performance and durability.
6) Easy to maintain and repair
We have office and engineer in Indonesia and India, we supply local service in this countries. We always utilize high grade components. The parts are interchangeable and can be replaced by customer self, therefore the maintenance costs are very low.
7) Good service
Customers can get free training in our company; Remote on-line video technical support; One year warranty for drone frame and three months for wearing parts.
