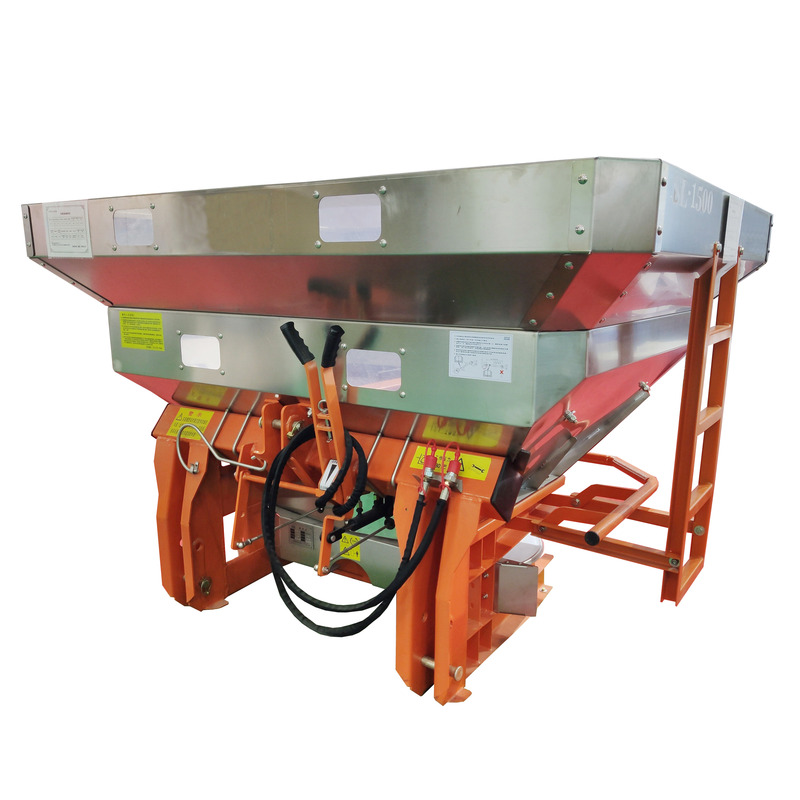

Tractor mounted PTO shaft stainless steel fertilizer spreader
Large capacity: 800-2000 L.
Work width: 10-24 m.
Manual control or hydraulic control .
Import the gear box.
Model BZ1200
Overall size 168*100*124 cm
Net weight 290 KG
Tank capacity 1200 L
Max loading weight 1200 KG
Spreader width 15-28 M
Tractor power 90-180 HP
PTO speed 540 rpm
Tank material stainless steel
Number of teeth of PTO shaft 6*6/6*8
Discharge quantitative system Accurate scale quantitative
Gear box Europe brand
PTO drive shaft China brand
Output type Rear output shaft
Boundary fertilizing system YES
Outlet control system Hydraulic / manual
Ordinary steel material
Model DT2000
Overall size 220*150*126 CM
Net weight 415 KG
Tank capacity 2000 L
Max loading weight 2000 KG
Spreader width 15-28 M
Tractor power 120-220 HP
PTO speed 540-600 rpm
Tank material steel plate
Number of teeth of PTO shaft 6*6/6*8
Discharge quantitative system Accurate scale quantitative
Gear box Europe brand
PTO drive shaft China brand
Output type Rear output shaft
Boundary fertilizing system YES
Outlet control system Hydraulic / manual
Stainless steel material box
Model SL1000
Overall size 168*104*104 CM
Net weight 225 KG
Tank capacity 1000 L
Max loading weight 1000 KG
Spreader width 12-22 M
Tractor power 50-100 KW
PTO speed 540 rpm
Tank material stainless steel
Number of teeth of PTO shaft 6*6/6*8
Discharge quantitative system Accurate scale quantitative
Gear box Europe brand
PTO drive shaft China brand
Output type Rear output shaft
Boundary fertilizing system YES
Outlet control system Hydraulic / manual
the Gearbox and coupling from Europen famous brand.
Model SL1500
Overall size 188*150*126 CM
Net weight 330 KG
Tank capacity 1500 L
Max loading weight 1500 KG
Spreader width 15-28 M
Tractor power 90-180 HP
PTO speed 540rpm
Tank material stainless steel
Number of teeth of PTO shaft 6*6/6*8
Discharge quantitative system Accurate scale quantitative
Gear box Europe brand
PTO drive shaft China brand
Output type Rear output shaft
Boundary fertilizing system YES
Outlet control system Hydraulic / manual
tractor mounted fertilizer spreaders SL-2000L tank capacity
tractor mounted fertilizer spreaders SL-2000L tank capacity
Model SL2000
Overall size 220*150*126 cm
Net weight 365 KG
Tank capacity 2000 L
Max loading weight 2000 KG
Spreader width 15-28 m
Tractor power 120-220 HP
PTO speed 540-600 rpm
Tank material stainless steel
Number of teeth of PTO shaft 6*6/6*8
Discharge quantitative system Accurate scale quantitative
Gear box Europe brand
PTO drive shaft China brand
Output type Rear output shaft
Boundary fertilizing system YES
Outlet control system Hydraulic / manual
the Gearbox and coupling from Europen famous brand.
the tank material can according to customer request choose .
HAVE OTHER MODEL FOR YOUR CHOOSE ACCORDING TO YOUR REQUEST.
tractor mounted fertilizer spreaders SL-1000L tank capacity
tractor mounted fertilizer spreaders SL-1200L tank capacity
tractor mounted fertilizer spreaders SL-2000L tank capacity
tractor backpack fertilizer spreaders SL-2000L tank capacity
tractor backpack fertilizer spreaders SL-2000L tank capacity
